My Great Lakes 2T-1A-2 Rebuild Diary 2007.

20/21/22-November-2007. Riveted end ribs to spar and varnished spars after fitting ply mod.

Here is this weeks progress:

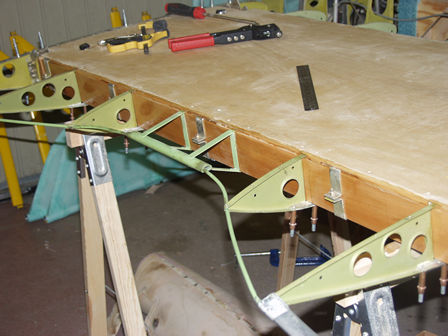

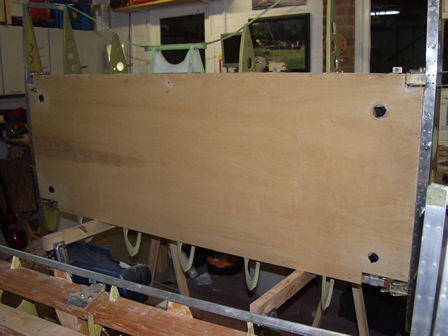

The underside of my centre section, with ply mod fitted.

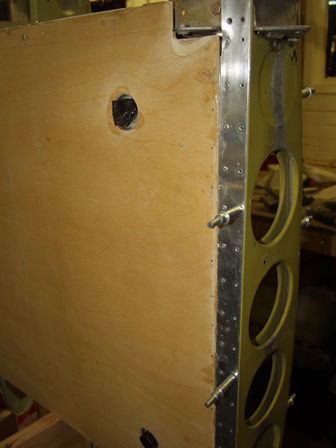

I have glued and nailed the side.

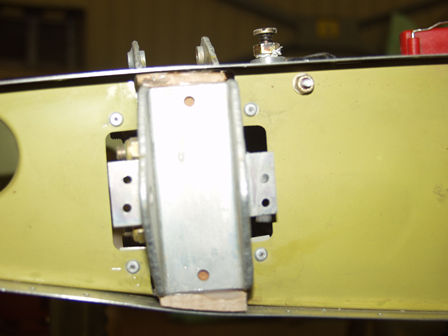

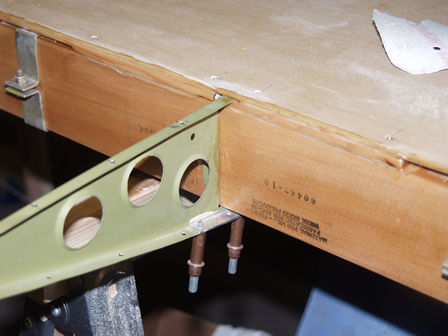

Side rib riveted to spar end fitting.

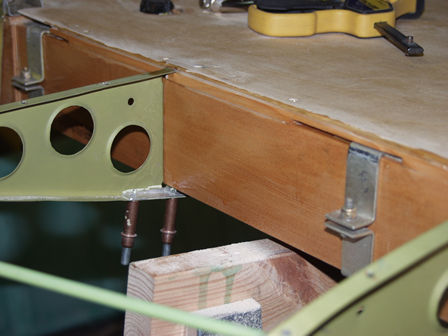

This show the filler pieces so the ply is sits flush to the rib.

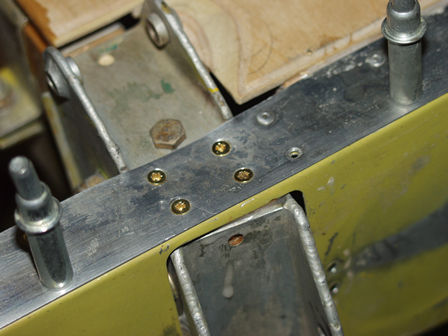

I used brass screw instead of the original steal screws.

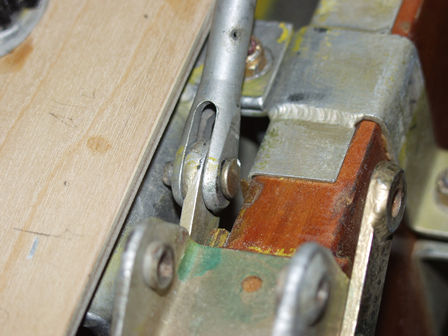

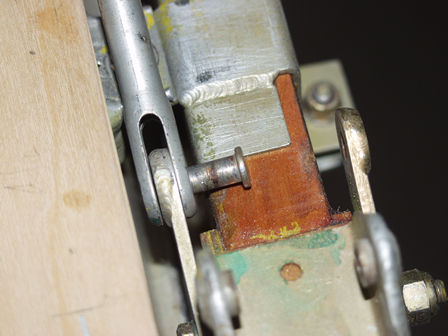

The end of the center section inner flying wire needs to be fitted now as the pin will not locate without undoing the bracket - not possible when covered.

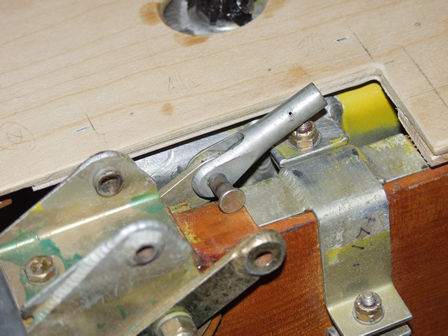

Pin is now fitted, I will fit split pin later.

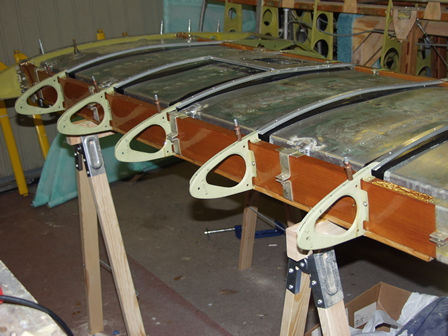

New front ribs before fitting leading edge.

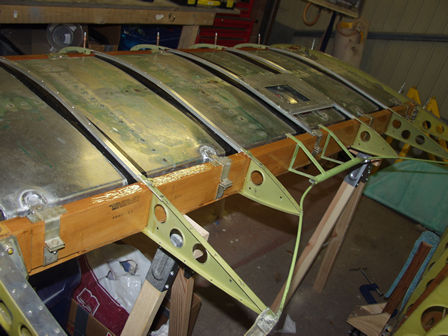

Rear ribs and handle.
