My Great Lakes 2T-1A-2 Rebuild Diary 2008.

01-April-2008. Fabric covering inspection panels.
This evening fitted fabric inspection panel attachments to L/H upper wing and started making them for R/H upper wing.

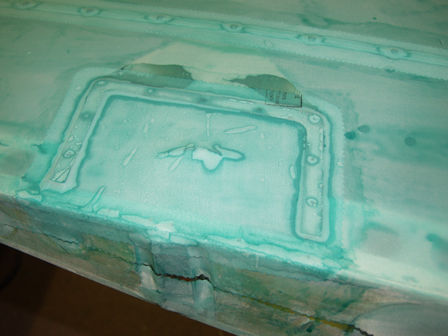

Rear wing root underside inspection and spar bolt panel.

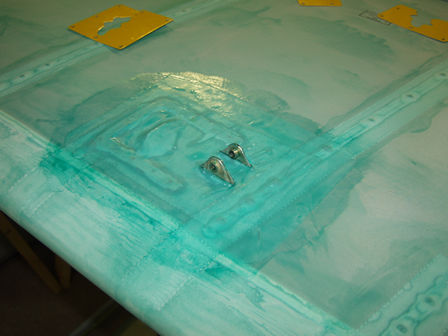

Front underside spar fixing panel. I have put two layers of fabric over the cover fabric attachment.

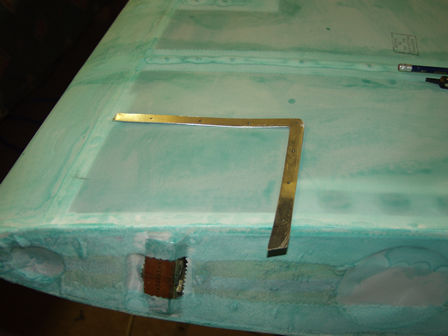

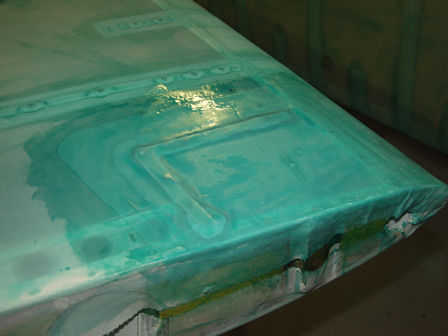

Forward mid upper. Again I put two layers of fabric over the panel attachment. I also covered the area around the interplane strut.

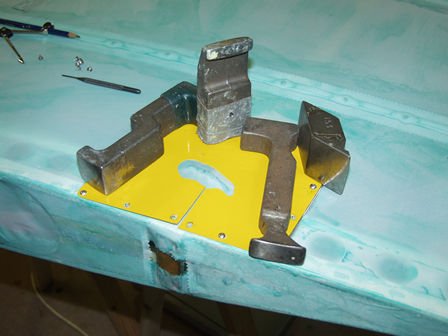

Started work on the R/H wing inspection panels. The panel attachment is under the panel being glued to the fabric.
Front one needs some trimming and attching to fabric.
