My Great Lakes 2T-1A-2 Rebuild Diary 2008.

16-January-2008. Right hand lower wing.
Started fitting the ribs back on to the spars. Shipment arrived from Aircraft Spruce, I am replacing the original Gill battery for an Odyssey.

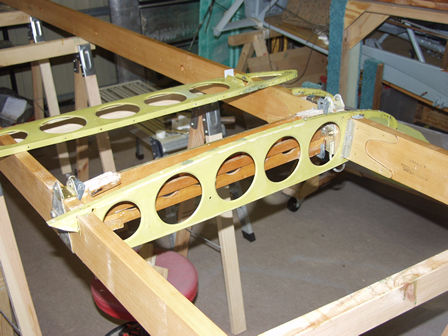

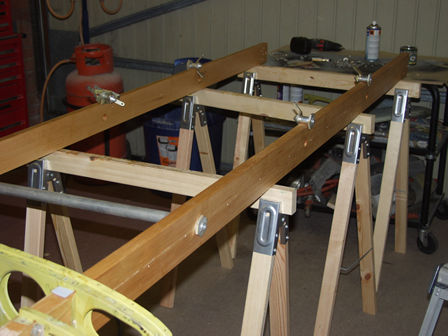

Refitted the centre wooden spar first.
Refitted the centre wooden spar first.

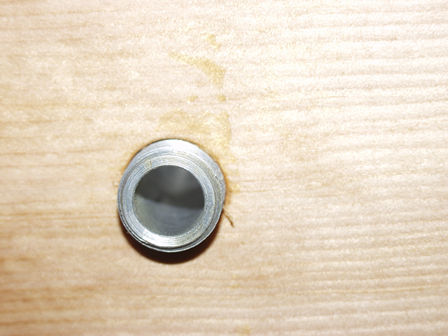

The hole fitting is far batter than the original spar.

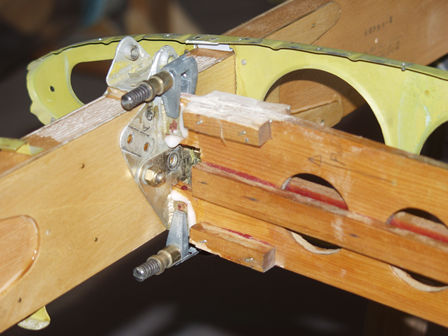

Everthing is marked up to go back as before.

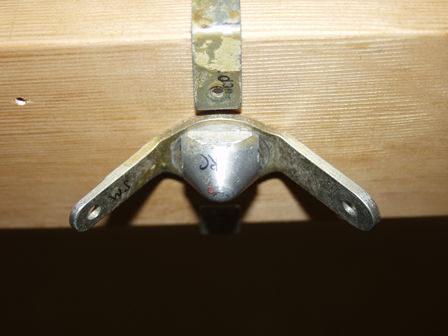

Each bracing mount ready to refit. They have to be refitted in turn with the ribs.

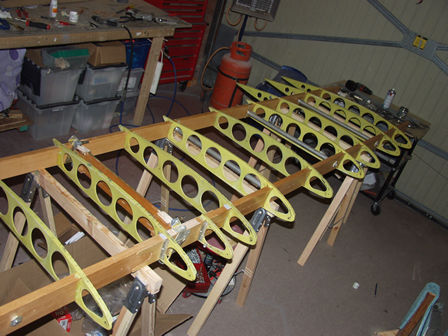

Ribs and braces in place, I still have the end ribs to fit, but good progress for 3hrs this evening.
